Geoms

All geom_*() functions (like geom_point()) return a layer that contains a Geom* object (like GeomPoint). The Geom* object is responsible for rendering the data in the plot.

Details

Each of the Geom* objects is a ggproto() object, descended from the top-level Geom, and each implements various methods and fields. The object and its parameters are chaperoned by the Layer class.

Compared to Stat and Position, Geom is a little different because the execution of the setup and compute functions is split up. setup_data runs before position adjustments, and draw_layer() is not run until render time, much later.

When creating a new Geom class, you may want to consider override one or more of the following:

The required_aes and default_aes fields.
The setup_data() and setup_params() functions.
Either the draw_panel() or draw_group() function.
The draw_key field.

Fields

required_aes

A character vector naming aesthetics that are necessary to render the geom.

non_missing_aes

A character vector naming aesthetics that will cause removal if they have missing values.

optional_aes

A character vector naming aesthetics that will be accepted by layer(), but are not required or described in the default_aes field.

default_aes

A mapping of default values for aesthetics. Aesthetics can be set to NULL to be included as optional aesthetic.

rename_size

A scalar boolean: whether to rename size aesthetics to linewidth.

extra_params

A character vector of parameter names in addition to those imputed from the draw_panel() or draw_groups() methods. This field can be set to include parameters for setup_data() or handle_na() methods. By default, this only contains "na.rm".

draw_key

A function generating a single legend glyph for the geom. Typically one of the functions prefixed by draw_key_.

setup_params

Description

A function method for modifying or checking the parameters based on the data. The default method returns the parameters unaltered.

Usage

Geom$setup_params(data, params)

Arguments

data: A data frame with the layer's data.
params: A list of current parameters.

Value

A list of parameters

setup_data

Description

A function method for modifying or checking the data prior to adding defaults. The default method returns data unaltered.

Usage

Geom$setup_data(data, params)

Arguments

data: A data frame with the layer's data.
params: A list of parameters coming from the setup_params() method.

Value

A data frame with layer data

use_defaults

Description

A function method for completing the layer data by filling in default aesthetics that are not present. It is not recommended to use as an extension point.

It takes on these tasks:

Evaluation of default aesthetics from the default_aes field.
Handling the after_scale()/stage(after_scale) stage of delayed evaluation.
Fill in fixed, unmapped aesthetics passed as parameters.

Usage

Geom$use_defaults(data, params, modifiers, default_aes, theme, ...)

Arguments

data: A data frame of the layer's data, coming from the setup_data() method. Can be NULL, in which case resolved defaults should be returned.
params: A list of fixed aesthetic parameters
modifiers: A mapping with delayed evaluations.
default_aes: A mapping with default aesthetics.
theme: A completed theme.

Value

A data frame with completed layer data.

handle_na

Description

A function method to handle missing values. The default method will remove rows that have missing values for the aesthetics listed in the required_aes and non_missing_aes fields. It is not recommended to use this method as an extension point.

Usage

Geom$handle_na(data, params)

Arguments

data: A data frame with the layer's data coming from the update_defaults() method.
params: A list of parameters coming from the setup_params() method

Value

A data frame with layer data

draw_layer

Description

A function method orchestrating the drawing of the entire layer. The default method splits the data and passes on drawing tasks to the panel-level draw_panel() method. It is not recommended to use this method as an extension point.

Usage

Geom$draw_layer(data, params, layout, coord)

Arguments

data: A data frame with the layer's data.
params: A list of parameters
layout: A completed <Layout> ggproto object.
coord: A <Coord> ggproto object.

Value

A list of grobs, one per panel

draw_panel,draw_group

Description

A function method orchestrating the drawing of the layer for a single panel or group. The default draw_panel() method splits the data into groups, passes on the drawing tasks to the group-level draw_group() method and finally assembles these into a single grob. The default draw_group method is not implemented.

Usage

Geom$draw_panel(data, panel_params, coord, ...)
Geom$draw_group(data, panel_params, coord, ...)

Arguments

data: A data frame with the layer's data.
panel_params: A list of per-panel parameters constructed by Coord$setup_panel_params(). This should be considered an opaque data structure that is just passed along when calling coord methods.
coord: A <Coord> ggproto object. To correctly scale the position data, one should always call coord$transform(data, panel_params). When working with non-linear coordinate systems, data should be converted to fit a primitive geom (e.g. point, path or polygon) and passed on to the corresponding draw method for munching.
...: Reserved for extensions. By default, this is passed on to the draw_group() method.

Value

A single grob or zeroGrob() when there is nothing to draw. For draw_panel() this can be a gTree holding individual grobs from the draw_group() method.

parameters

Description

A function method for listing out all acceptable parameters for this geom.

Usage

Geom$parameters(extra)

Arguments

extra: A boolean: whether to include the extra_params field.

Value

A character vector of parameter names.

aesthetics

Description

A function method for listing out all acceptable aesthetics for this geom.

Usage

Geom$aesthetics()

Value

A character vector of aesthetic names.

Conventions

The object name that a new class is assigned to is typically the same as the class name. Geom class names are in UpperCamelCase and start with the Geom* prefix, like GeomNew.

A constructor function is usually paired with a Geom class. The constructor wraps a call to layer(), where e.g. layer(geom = GeomNew). The constructor function name is formatted by taking the Geom class name and formatting it with snake_case, so that GeomNew becomes geom_new().

Examples

# Extending the class
GeomSimplePoint <- ggproto(
  "GeomSimplePoint", Geom,
  # Fields
  required_aes = c("x", "y"),
  draw_key     = draw_key_point,
  # Methods
  draw_panel = function(data, panel_params, coord) {
    data <- coord$transform(data, panel_params)
    grid::pointsGrob(data$x, data$y)
  }
)

# Building a constructor
geom_simple_point <- function(mapping = NULL, data = NULL, stat = "identity",
                              position = "identity", ..., na.rm = FALSE,
                              show.legend = NA, inherit.aes = TRUE) {
  layer(
    mapping = mapping, data = data,
    geom = GeomSimplePoint, stat = stat, position = position,
    show.legend = show.legend, inherit.aes = inherit.aes,
    params = list(na.rm = na.rm, ...)
  )
}

# Use new geom in plot

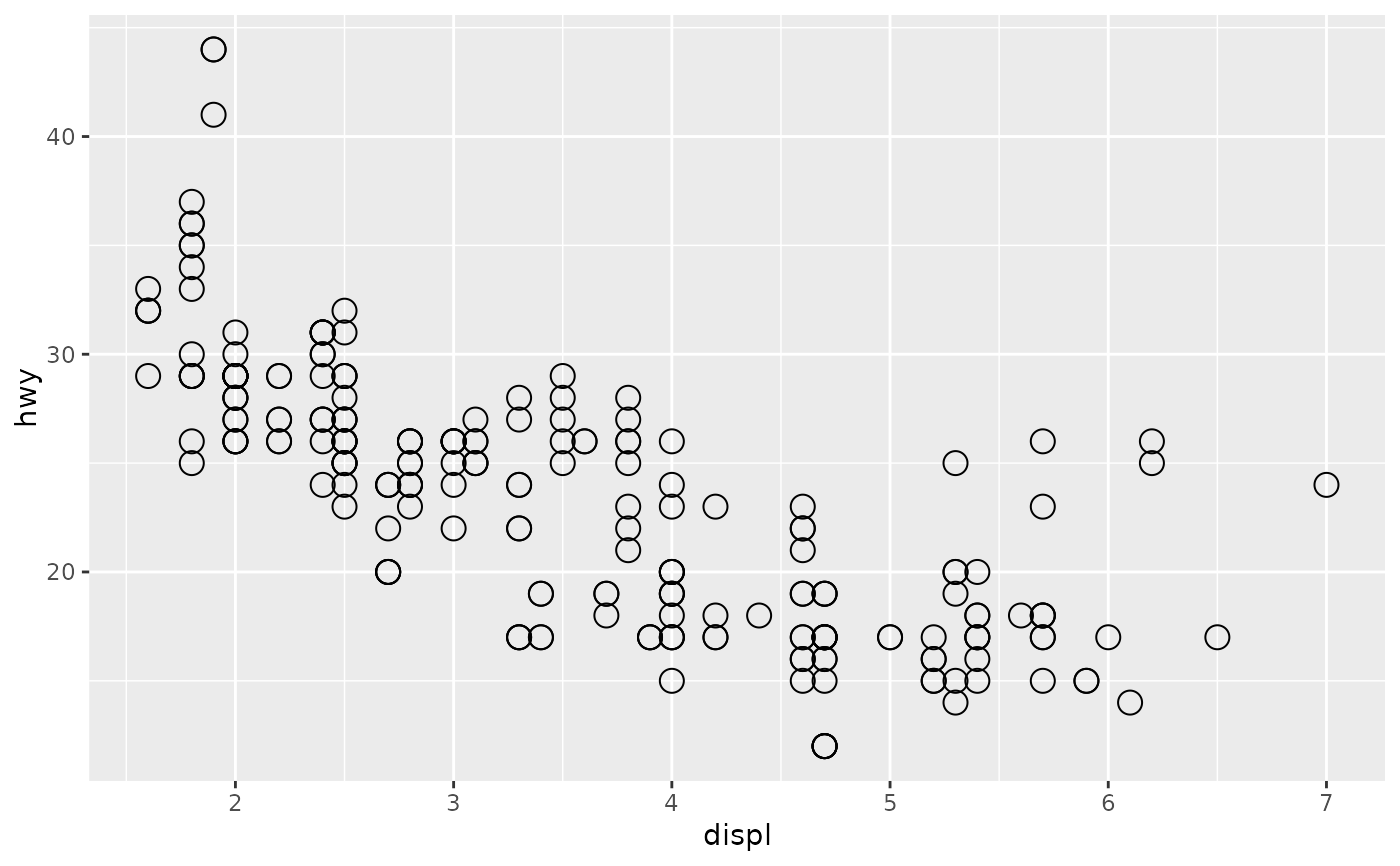

ggplot(mpg, aes(displ, hwy)) +
  geom_simple_point()
