Guides

The guide_* functions (like guide_legend()) return Guide* objects (like GuideLegend). The Guide* object is responsible for rendering the guide for at least one aesthetic.

Details

Each of the Guide* objects is a ggproto() object, descended from the top-level Guide, and each implements various methods and fields.

Building a guide has three stages:

The guide extracts the relevant information from scales.
The guide interacts with other parts of the plot, like coords or layers to supplement information.
The guide is rendered.

When creating a new Guide class, you may want to consider overriding one or more of the following:

The params, elements, hashables and available_aes fields.
The extract_key(), extract_decor() and extract_params() methods.
The transform() or get_layer_key() methods.
The setup_params() and override_elements() methods.
Any of the build_* methods.
As a last resort the measure_grobs(), arrange_layout(), and assemble_drawing() methods.

Fields

params

A list of initial parameters that the guide needs to function. The base Guide$params contains mandatory parameters, but extensions can add new parameters. It has the following roles:

It provides the default values for parameters.
names(params) determines what are valid arguments for new_guide().
During build stages, a mutable copy of params holds information about the guide.

available_aes

A character vector of aesthetic names for which the guide is appropriate. Can use keyword "any" to indicate all non-position aesthetics.

elements

A named list of strings stating which theme elements this guide uses. By default, strings will be translated in Guide$setup_elements() using calc_element(). Strings are expected to occur in names(get_element_tree()), like "legend.text" for example. Position guides typically append the {aes}.{position} suffix in the setup_elements() method when the position is known.

hashables

A list of calls or names constructed by rlang::exprs() indicating objects in the params field. These will be evaluated in the context of the params field and the resulting list will be hashed. The hash uniquely identify guides that can merge. Guides that have different hashes will not merge. For extensions, you should include objects that clearly mark two guides from one another that cannot be merged.

train

Description

A function method for orchestrating the training of a guide, which extracts necessary information from a Scale object. As orchestrator, this method is not intended for extension.

Usage

Guide$train(params, scale, aesthetic, ...)

Arguments

params: A list of parameters initiated by the params field.
scale: A <Scale> ggproto object. In the case of position guides, can be a <ViewScale> ggproto object.
aesthetic: A scalar string specifying the aesthetic. If missing (default), it will use the first aesthetic specified in the scale.
...: Additional parameters passed on to the extract_params() method.

Value

A modified list of parameters

extract_key

Description

A function method for extracting break information from the scale called the 'key'. It retrieves breaks, maps these breaks and derives labels. These form the basis for tick marks and labels in some guides. It is appropriate to override in extensions.

Usage

Guide$extract_key(scale, aesthetic, ...)

Arguments

scale: A <Scale> ggproto object. In the case of position guides, can be a <ViewScale> ggproto object.
aesthetic: A scalar string specifying the aesthetic.
...: Optional arguments from the params field.

Value

A 'key' data frame containing annotated scale breaks, including at least a column for the aesthetic, .label and .value. If there are no breaks, returns NULL.

extract_decor

Description

A function method for extracting 'decor' from the scale. The 'decor' acts as a wildcard for anything the guide may need to render that is not based on the key. For this reason, it has guide specific meaning that indicates different things for different guides. In guide_colourbar() it is the colour gradient, but in guide_axis() it is the axis line information. It is appropriate to override in extensions.

Usage

Guide$extract_decor(scale, aesthetic, ...)

Arguments

scale: A <Scale> ggproto object. In the case of position guides, can be a <ViewScale> ggproto object.
aesthetic: A scalar string specifying the aesthetic.
...: Optional arguments from the params field.

Value

Undefined. NULL by default.

extract_params

Description

A function method for extracting any other information from the scale that the guide may need. A typical example is to derive the title from the scale, or apply any edits to the key or decor variables.

Usage

Geom$extract_params(scale, params, ...)

Arguments

scale: A <Scale> ggproto object. In the case of position guides, can be a <ViewScale> ggproto object.
params: A list of parameters initiated by the params field, which at this point includes the key and decor from previous extractors.
...: Additional arguments passed from the train() method. For non-position guides, often includes title as derived from the plot$labels field.

Value

A modified list of parameters

transform

Description

A function method to apply coord transformation and munching to the 'key' and 'decor' parameters. This method only applies to position guides like guide_axis() and is not called for non-position guides. It is recommended to override this method if you have a position guide that does not inherit from GuideAxis or has custom key' or 'decor' structures that GuideAxis$transform() does not handle well.

Usage

Guide$transform(params, coord, ...)

Arguments

params: A list of parameters initiated by the params field.
coord: A <Coord> ggproto object.
...: Optional arguments, typically panel_params for most position guides.

Value

A list of parameters. The default throws an error.

merge

Description

A function method for combining information from two guides. When two guides have the same computed hash parameter derived from the hashables field, this function will be called to merge them. If more than two guides need to be merged, they are merged successively in a Reduce()-like fashion.

Merging guides is the mechanism by which guide_legend() can take one guide trained on the shape scale, another trained on the colour scale and display them together in the same guide, for example.

Overriding this method is recommended if the extension descends directly from Guide and not its children. Otherwise, it should be overridden if presented with no superior options.

Usage

Guide$merge(params, new_guide, new_params)

Arguments

params: A list of parameters derived from the params field of this guide.
new_guide: A <Guide> ggproto object representing the other guide class
new_params: A list of parameters derived from the params field of the other guide

Value

A named list containing guide and params, where guide is a <Guide> ggproto object and params is a list with parameters. By default, returns the new guide and its parameters.

process_layers,get_layer_key

Description

These function methods extract information from layers that the guide may need. The process_layers() method is tasked with selecting layers that are represented by the guide and are to be included. The selected layers should be passed on to the get_layer_key() method.

Typical use of these methods is for guide_legend() to extract the Geom$draw_key function to render glyphs in addition to any default or fixed aesthetics. While these methods are called in position guides, the layers and data arguments are empty as these are unavailable at that point.

You can override get_layer_key(), but process_layers() should probably only be overridden if the extension does not inherit from GuideLegend.

Usage

Guide$process_layers(params, layers, data, theme)
Guide$get_layer_key(params, layers, data, theme)

Arguments

params: A list of parameters initiated by the params field.
layers: A list of layers from plot$layers.
data: A list of layer data frames.
theme: A completed theme object.

Value

A list of parameters

draw

Description

A function method is the main orchestrator for drawing the guide. It sets up the final pieces in context of the position, direction and theme and. Subsequenty, it renders the individual components like titles, ticks, labels and decor. Finally, it arranges these components into a guide.

This method should only be overridden if the extension has non standard components that do not fit into 'decor' or when this method can be greatly simplified for humble guides. All subsidiaries are fine to override.

Usage

Geom$setup_params(theme, position, direction, params)

Arguments

theme: A complete theme object.
position: A scalar string indicating the position where the guide should be drawn. Typically "top", "right", "bottom" or "left", unless it is a position guide for an exotic coord. Can be NULL, in which case params$position should be used.
direction: A scalar string indicating the legend direction. Can be NULL, in which case params$direction should be used.
params: A list of parameters initiated by the params field.

Value

A grob with the guide.

draw_early_exit

Description

A function method that determines what should be drawn when the guide 'key' is empty. The default method returns zeroGrob(). You can override this method if an empty key should draw anything. Used in guide_axis() to render the axis.line part even if no ticks or labels should be drawn.

Usage

Guide$draw_early_exit(params, elements)

Arguments

params: A list of parameters initiated by the params field.
elements: A list of elements or resolved theme settings from the override_elements() method.

Value

A grob.

setup_params

Description

A function method for finalising parameters. Typically used to make checks on the params object or to make any position or direction based adjustments.

Usage

Guide$setup_params(params)

Arguments

params: A list of parameters initiated by the params field.

Value

A list of parameters

setup_elements,override_elements

Description

A function method for resolving required theme elements. The setup_elements() method joins local guide theme with global theme and calculates the necessary theme elements. The override_elements() method is a hook to edit elements after they've been calculated.

You can override the setup_elements() method if you need more complicated theme handling before calculating elements or want to intervene in inheritance. For example, guide_legend() has special handling of text margins and guide_axis() suffixes {aes}.{position} to get the theme elements for the correct position.

For other purposes, you can override the override_elements() method.

Usage

Guide$setup_elements(params, elements, theme)
Guide$override_elements(params, elements, theme)

Arguments

params: A list of parameters initiated by the params field.
elements: A named list of strings initiated by the elements field.
theme: A complete theme

Value

A list of elements or resolved theme settings.

build_title

Description

A function method for rendering the title. Note that titles for position guides are rendered by the Facet class and not this method.

You can override this method if you need to render more than one title (or none) or adjust margin settings.

Usage

Guide$build_title(label, elements, params)

Arguments

label: A single string or expression with the title text.
elements: A list of elements or resolved theme settings from the override_elements() method. The default method expects elements$title to inherit from the <element_text> class.
params: A list of parameters initiated by the params field.

Value

A grob representing the title.

build_ticks

Description

A function method for rendering tick marks.

You can override this function if you don't need ticks or have completely different logic on how these should be drawn.

Usage

Guide$build_ticks(key, elements, params, position, length)

Arguments

key: A data frame with the key information derived from the extract_key() method.
elements: A list of elements or resolved theme settings from the override_elements() method. The default method expects elements$ticks to inherit from the <element_line> class and elements$ticks_length to be a scalar <unit> object.
params: A list of parameters initiated by the params field.
position: A scalar string indicating the position. Due to historic error this works in the opposite way to intuition: if you want ticks for an axis at the bottom of a plot, you should use "top" here.
length: A scalar <unit> object giving the tick length.

Value

A grob representing tick marks.

build_labels

Description

A function method for rendering labels. The default method returns an empty grob. It is recommended to override this method when your extension directly descends from Guide.

Usage

Guide$build_labels(key, elements, params)

Arguments

key: A data frame with the key information derived from the extract_key() method.
elements: A list of elements or resolved theme settings from the override_elements() method. Most non-default methods expects elements$text to inherit from the <element_text>.
params: A list of parameters initiated by the params field.

Value

A grob representing labels.

build_decor

Description

A function method for rendering decor. As the 'wildcard' component, this can draw whatever component the guide needs that isn't already captured by the key. The default method returns an empty grob. It is recommended to override this method.

For some examples: guide_legend() renders the keys with the glyphs, guide_colourbar() renders the colour gradient rectangle and guide_axis() renders the axis line.

Usage

Guide$build_decor(decor, grobs, elements, params)

Arguments

decor: A data frame (or other structure) with information derived from the extract_decor() method.
grobs: A list with grobs generated by the other build_* methods.
elements: A list of elements or resolved theme settings from the override_elements() method. Most non-default methods expects elements$text to inherit from the <element_text>.
params: A list of parameters initiated by the params field.

Value

A grob.

measure_grobs

Description

A function method for measuring grobs. In preparation for arranging grobs, they often need to be measured to determine their widths and heights. It is convention that every measurement is converted to centimetres. You can override this method if your extension directly descends from Guide, or the parent class measurement is defective.

Usage

Guide$measure_grobs(grobs, params, elements)

Arguments

grobs: A list with grobs generated by the build_* methods.
params: A list of parameters initiated by the params field.
elements: A list of elements or resolved theme settings from the override_elements() method.

Value

A named list or <unit> vector giving sizes of components, coordinated with arrange_layout() and assemble_drawing() methods. The default method returns NULL.

arrange_layout

Description

A function method for determining the location or order of grobs in a gtable. Typically determines rows and columns where decor and labels are placed. Titles are added seperately.You can override this method if your extension directly descends from Guide.

Usage

Guide$arrange_layout(key, sizes, params, elements)

Arguments

key: A data frame with the key information derived from the extract_key() method.
sizes: A list of <unit> vector from the measure_grobs() method.
params: A list of parameters initiated by the params field.
elements: A list of elements or resolved theme settings from the override_elements() method.

Value

Any structure holding placement information coordinated with the assemble_drawing() method.

assemble_drawing

Description

A function method that takes measurements, placement information and grobs and assembles these together in a gtable structure. You can override this method if your extension directly descends from Guide, or the parent class assembly does not work for your guide.

Usage

Guide$assemble_drawing(grobs, layout, sizes, params, elements)

Arguments

grobs: A list with grobs generated by the build_* methods.
layout: A data structure from the arrange_layout() method.
sizes: A list of <unit> vector from the measure_grobs() method.
params: A list of parameters initiated by the params field.
elements: A list of elements or resolved theme settings from the override_elements() method.

Value

A finished gtable containing the guide.

arrange_layout

Description

A function method for placing the title. It is a subsidiary method used in the assemble_drawing() method for non-position guides. Titles are typically added before legend.margin is applied. It is not recommended to override this method.

Usage

Guide$add_title(gtable, title, position, just)

Arguments

gtable: An unfinished gtable under construction in the assemble_drawing() method.
title: The grob resulting from the build_title() method.
position: A scaler string, either "top", "right", "bottom" or "left" corresponding to the legend.title.position.
just: A named list having hjust and vjust components with scalar numeric values between 0 and 1.

Value

The gtable argument with added title.

Conventions

The object name that a new class is assigned to is typically the same as the class name. Guide class names are in UpperCamelCase and start with the Guide* prefix, like GuideNew.

A constructor function is usually paired with a Guide class. The constructor wraps a call to new_guide(), where e.g. new_guide(super = GuideNew). The constructor name is formatted by taking the Guide class name and formatting it with snake_case, so that GuideNew becomes guide_new().

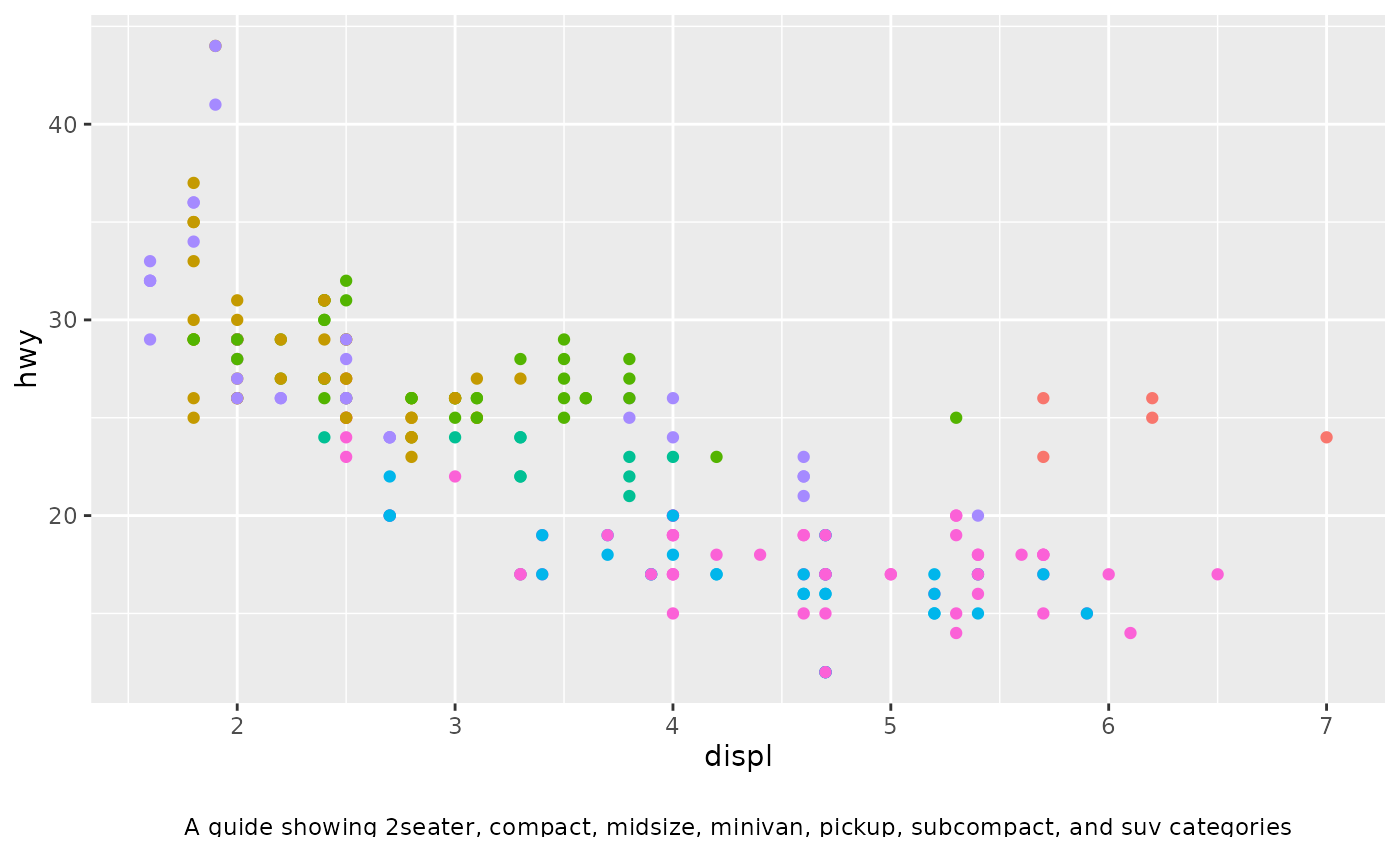

Examples

# Extending the class
GuideDescribe <- ggproto(
  "GuideDescribe", Guide,
  # Fields
  elements  = list(text = "legend.text", margin = "legend.margin"),
  hashables = rlang::exprs(key$.label),

  # Methods
  build_title = function(...) zeroGrob(), # Turn off title

  build_labels = function(key, elements, params) {
    labels <- key$.label
    n <- length(labels)
    labels <- paste0(paste0(labels[-n], collapse = ", "), ", and ", labels[n])
    labels <- paste0("A guide showing ", labels, " categories")
    element_grob(elements$text, label = labels, margin_x = TRUE, margin_y = TRUE)
  },

  measure_grobs = function(grobs, params, elements) {
    # Measuring in centimetres is the convention
    width  <- grid::convertWidth(grid::grobWidth(grobs$labels), "cm", valueOnly = TRUE)
    height <- grid::convertHeight(grid::grobHeight(grobs$labels), "cm", valueOnly = TRUE)
    list(width = unit(width, "cm"), height = unit(height, "cm"))
  },

  assemble_drawing = function(self, grobs, layout, sizes, params, elements) {
    gt <- gtable::as.gtable(grobs$labels, width = sizes$width, height = sizes$height)
    gt <- gtable::gtable_add_padding(gt, elements$margin)
    gt
  }
)

# Building a constructor
guide_describe <- function(position = NULL) {
  new_guide(position = position, super = GuideDescribe)
}

# Use new guide plot
ggplot(mpg, aes(displ, hwy, colour = class)) +
  geom_point() +
  guides(colour = guide_describe("bottom"))

Details

Fields

Conventions

See also

Examples
