The point geom is used to create scatterplots. The scatterplot is most
useful for displaying the relationship between two continuous variables.
It can be used to compare one continuous and one categorical variable, or
two categorical variables, but a variation like
geom_bin2d is usually more
geom_point(mapping = NULL, data = NULL, stat = "identity", position = "identity", ..., na.rm = FALSE, show.legend = NA, inherit.aes = TRUE)
Set of aesthetic mappings created by
aes_. If specified and
inherit.aes = TRUE (the
default), it is combined with the default mapping at the top level of the
plot. You must supply
mapping if there is no plot mapping.
The data to be displayed in this layer. There are three options:
NULL, the default, the data is inherited from the plot
data as specified in the call to
data.frame, or other object, will override the plot
data. All objects will be fortified to produce a data frame. See
fortify for which variables will be created.
function will be called with a single argument,
the plot data. The return value must be a
will be used as the layer data.
The statistical transformation to use on the data for this layer, as a string.
Position adjustment, either as a string, or the result of a call to a position adjustment function.
other arguments passed on to
layer. These are
often aesthetics, used to set an aesthetic to a fixed value, like
color = "red" or
size = 3. They may also be parameters
to the paired geom/stat.
FALSE, the default, missing values are removed with
a warning. If
TRUE, missing values are silently removed.
logical. Should this layer be included in the legends?
NA, the default, includes if any aesthetics are mapped.
FALSE never includes, and
TRUE always includes.
FALSE, overrides the default aesthetics,
rather than combining with them. This is most useful for helper functions
that define both data and aesthetics and shouldn't inherit behaviour from
the default plot specification, e.g.
The bubblechart is a scatterplot with a third variable mapped to the size of points. There are no special names for scatterplots where another variable is mapped to point shape or colour, however.
The biggest potential problem with a scatterplot is overplotting: whenever
you have more than a few points, points may be plotted on top of one
another. This can severely distort the visual appearance of the plot.
There is no one solution to this problem, but there are some techniques
that can help. You can add additional information with
geom_density_2d. If you have few unique x values,
geom_boxplot may also be useful.
Another technique is to make the points transparent (e.g.
geom_point(alpha = 0.05)) or very small (e.g.
geom_point(shape = ".")).
geom_point understands the following aesthetics (required aesthetics are in bold):

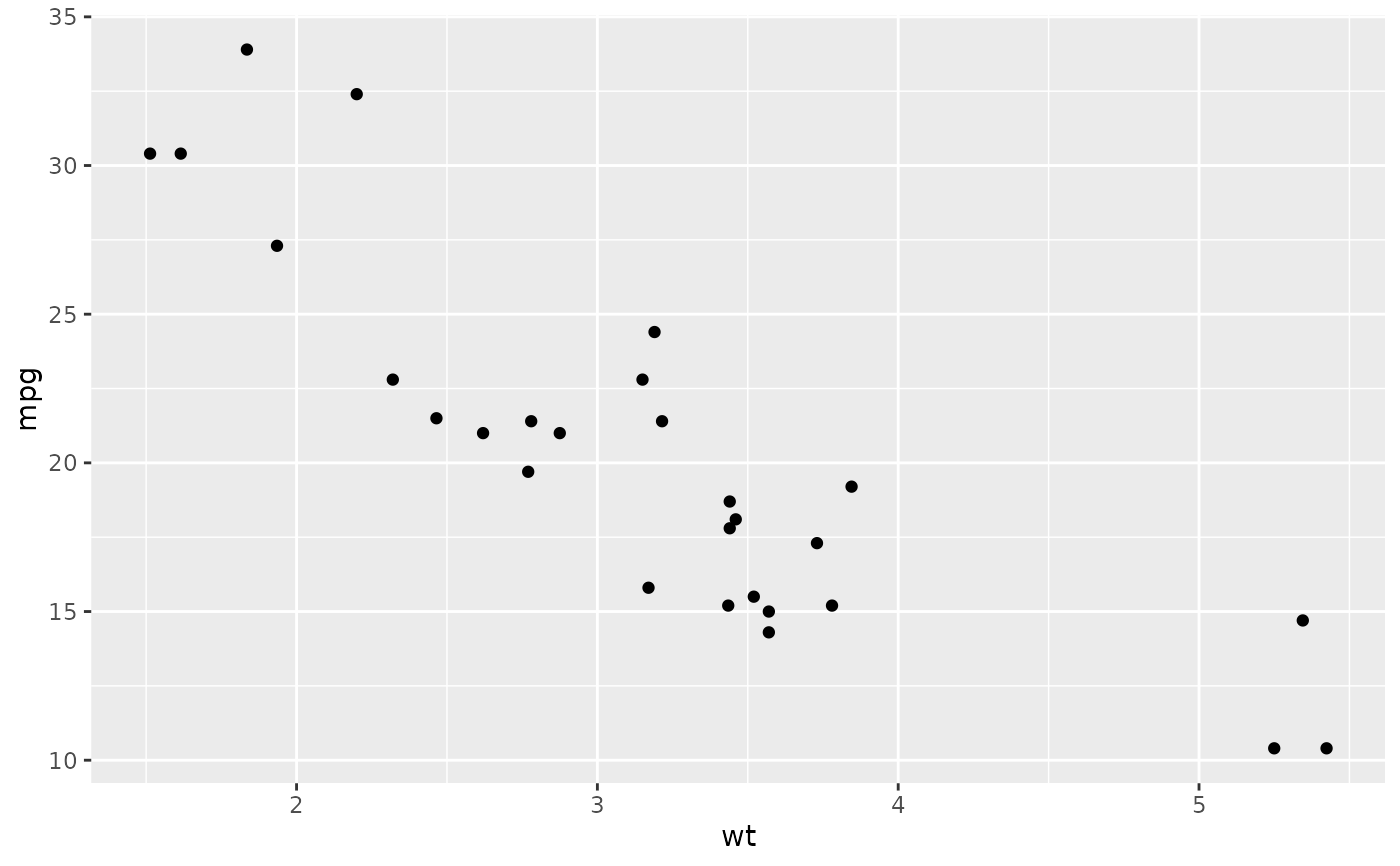

# Add aesthetic mappings p + geom_point(aes(colour = factor(cyl)))p + geom_point(aes(shape = factor(cyl)))p + geom_point(aes(size = qsec))# Varying alpha is useful for large datasets d <- ggplot(diamonds, aes(carat, price)) d + geom_point(alpha = 1/10)d + geom_point(alpha = 1/20)d + geom_point(alpha = 1/100)# For shapes that have a border (like 21), you can colour the inside and # outside separately. Use the stroke aesthetic to modify the width of the # border ggplot(mtcars, aes(wt, mpg)) + geom_point(shape = 21, colour = "black", fill = "white", size = 5, stroke = 5)# You can create interesting shapes by layering multiple points of # different sizes p <- ggplot(mtcars, aes(mpg, wt, shape = factor(cyl))) p + geom_point(aes(colour = factor(cyl)), size = 4) + geom_point(colour = "grey90", size = 1.5)p + geom_point(colour = "black", size = 4.5) + geom_point(colour = "pink", size = 4) + geom_point(aes(shape = factor(cyl)))# These extra layers don't usually appear in the legend, but we can # force their inclusion p + geom_point(colour = "black", size = 4.5, show.legend = TRUE) + geom_point(colour = "pink", size = 4, show.legend = TRUE) + geom_point(aes(shape = factor(cyl)))# geom_point warns when missing values have been dropped from the data set # and not plotted, you can turn this off by setting na.rm = TRUE mtcars2 <- transform(mtcars, mpg = ifelse(runif(32) < 0.2, NA, mpg)) ggplot(mtcars2, aes(wt, mpg)) + geom_point()#> Warning: Removed 6 rows containing missing values (geom_point).
